A residential cut on Pacific Drive exposed a sand seam right at the footing line. The builder had planned a standard masonry wall, but the coastal sand lens complicated the bearing. In Port Macquarie, retaining wall design often confronts exactly this: a mix of residual clay, estuarine silts, and Pleistocene dunes that shift behavior from one lot to the next. The team recalibrated the geometry and specified a reinforced concrete cantilever with a shear key. That wall now holds a two-level garden without a single crack. Designing a retaining wall here means reading the Hastings Valley geology before you draw a single line. AS 4678 demands a design life that survives decades of salt-laden wind and intense summer downpours. We combine deep excavation monitoring with local stratigraphic models so the wall works with the ground, not against it. Port Macquarie’s growth along the escarpments makes this engineering discipline more critical than ever.
A Port Macquarie retaining wall must handle both short-term construction pore pressures and decades of coastal weathering — design for the 1-in-500-year storm and the everyday salt spray.
Area-specific notes
AS 4678 and AS 1170.4 classify Port Macquarie as a moderate-seismic region, but the real risk resides in the shallow groundwater perched within the dune deposits. A wall designed without adequate drainage builds up hydrostatic pressure behind the stem during a La Niña wet season, and that pressure can exceed the design surcharge by a factor of three. We’ve seen unreinforced block walls lean 150 mm after a single heavy-rain month. The other local hazard is uncontrolled excavation on steep Hastings Valley lots. A cut that removes the toe of a natural slope can trigger a retrogressive failure, pulling the wall and the house with it. Every retaining wall design we deliver for Port Macquarie includes a full global stability check, not just stem and base bending, because the 20° slope behind the property matters just as much as the reinforcement inside the wall.
Standards used
AS 4678-2002, AS/NZS 1170.0:2002, AS 1726:2017, AS 3600 (concrete design), AS 3700 (masonry)
Linked services

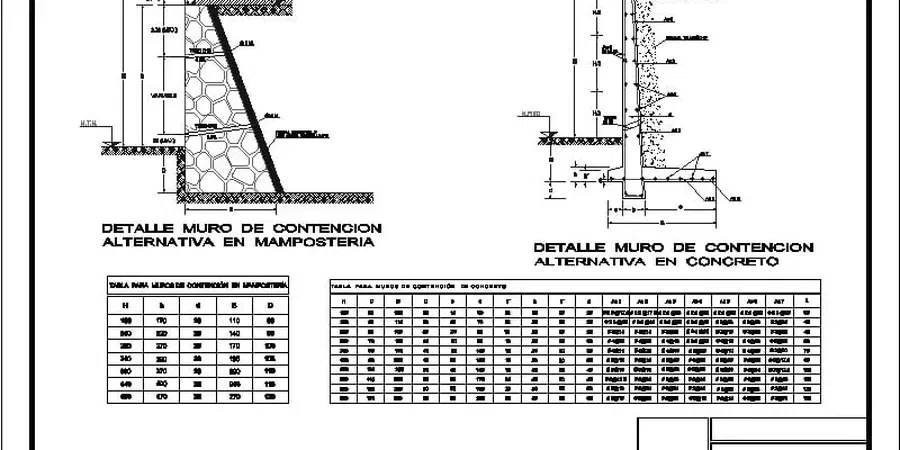

Cantilever & Gravity Wall Design
Reinforced concrete or mass gravity walls engineered for medium cuts up to 4 m. Includes bearing capacity check on Port Macquarie’s typical Pindimar Clay, sliding and overturning verification per AS 4678, drainage detailing, and construction-phase inspection schedules.
Anchored & Segmental Retaining Systems
MSE walls, anchored soldier piles, and segmental block systems for constrained sites where a cantilever footprint is too wide. We design the anchor bond length into the competent residual soil below the weathered zone, a critical detail in the Hastings Valley profile.
Typical parameters
Top questions
How much does a retaining wall design cost in Port Macquarie?
Professional design fees for a residential retaining wall in Port Macquarie usually fall between AU$1,790 and AU$6,430, depending on wall height, complexity, and whether the site requires a geotechnical investigation or slope stability analysis.
Why can’t I just use a standard council detail for my wall?
Council standard details assume uniform soil and a flat backslope. Many Port Macquarie lots sit on dune sand over weathered clay, or have a 15°–25° cross-slope. A standard detail won’t account for the loss of passive resistance on the downhill side, and that can lead to a wall that rotates out of plumb within the first wet season. A site-specific design verifies global stability, bearing capacity, and drainage for your actual ground profile.
What drainage is required behind a retaining wall in this coastal environment?
We detail a continuous strip drain or geocomposite blanket behind the stem, connected to weep holes at 1.5 m centers horizontally. The free-draining granular backfill extends at least 300 mm from the wall face. For walls over 2 m, we often add a subsoil collector drain at the base to intercept perched groundwater, which is common in the dune deposits east of the Pacific Highway.
Do I need a geotechnical investigation before the wall design?
Yes. AS 4678 requires knowledge of soil strength parameters (φ’, c’) and groundwater position to calculate earth pressures. Without a borehole or test pit, the designer must use conservative assumed values, which often inflates the wall size and cost. A targeted investigation pays for itself by confirming the actual soil profile and letting the engineer optimize the design.
