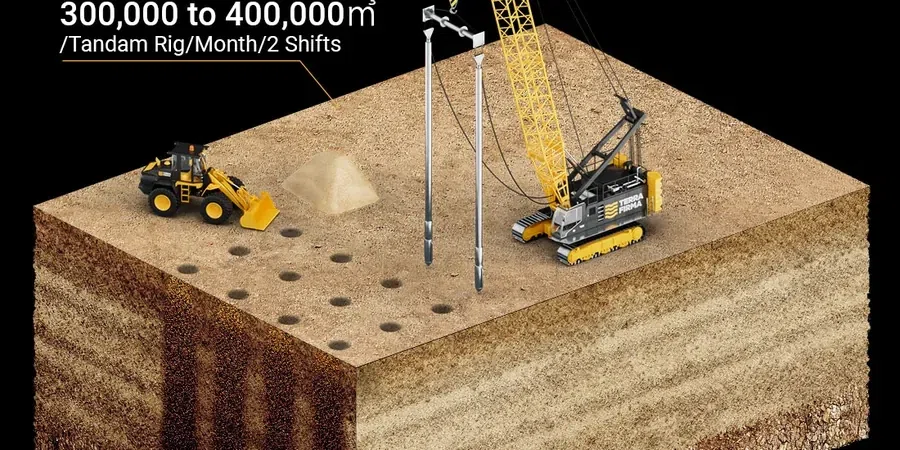

The deep vibratory rigs used for vibrocompaction in Port Macquarie are purpose-built for the coastal sand deposits that define this stretch of the Mid North Coast. Operating at frequencies between 30 and 50 Hz, these depth vibrators descend through loose granular profiles to densify the soil matrix in situ, a technique that proves essential where the Hastings River floodplain and Quaternary dune sands meet urban expansion. The design process starts with a detailed geotechnical model of the site, often informed by in-situ permeability testing and grain size distribution analysis to verify that the material is suitable for vibratory densification. Because Port Macquarie sits on the boundary between the Port Macquarie Coastal Quaternary Sands and the Carboniferous meta-sediments of the New England Fold Belt, the ground response can shift dramatically within a single block. Every vibrocompaction design must account for this transition, specifying probe spacing, vibration duration, and power requirements that match the actual fines content encountered.
Vibrocompaction transforms loose coastal sand into a competent bearing stratum without importing fill, which in Port Macquarie's constrained coastal sites can mean the difference between a viable project and one that stalls at the foundation stage.
Scope of work
Area-specific notes
AS 4678-2002, together with the investigation protocols of AS 1726-2017, sets the framework for ground improvement design across Australia, but in Port Macquarie the risk profile is shaped by the prevalence of loose, water-bearing sands that can trigger differential settlement under cyclic loading. Sites near the Hastings River and its tributary creeks often contain layers of organic silt that are not treatable by vibrocompaction alone, and missing these pockets during the site investigation phase leads to under-designed foundations that will require costly remediation. The coastal wind-blown sand deposits along Lighthouse Beach and Town Beach also present a liquefaction potential that must be addressed through densification to a target relative density of at least 70 percent. When the design underestimates the thickness of these loose units, the structure faces long-term serviceability problems that are far more expensive to correct than the initial ground treatment.
Standards used
AS 4678-2002: Earth-retaining structures (design basis for ground improvement), AS 1726-2017: Geotechnical site investigations, AS/NZS 1170.0:2002: Structural design actions – General principles
Linked services
Vibrocompaction Feasibility Assessment
We evaluate the grain size distribution, fines content, and in-situ density of the Port Macquarie site to determine whether vibratory methods will achieve the specified performance criteria, including a preliminary estimate of probe spacing and energy input.
Production Design and Grid Layout
Detailed design package covering triangular or square probe grids, depth staging, ammeter-based acceptance criteria, and sequencing that accounts for site boundaries, adjacent structures, and groundwater conditions typical of the Hastings floodplain.
Post-Treatment Verification Program
Design and supervision of CPT, SPT, or pressuremeter testing after compaction to confirm that target relative density and settlement limits have been met, with reporting aligned to AS 1726 and project specification requirements.
Typical parameters
Top questions
What does a vibrocompaction design package for a Port Macquarie site typically cost?
Design fees for vibrocompaction in the Port Macquarie region generally range from AU$2,480 to AU$8,920, depending on the size of the treatment area, the number of probe locations, and the complexity of the ground profile. A straightforward residential block on clean sand sits at the lower end, while a commercial site with variable stratigraphy and deeper treatment depths moves toward the upper end of that range.
How deep can vibrocompaction effectively treat the sands found in Port Macquarie?
In the coastal sand deposits around Port Macquarie, effective treatment depths typically reach 10 to 12 metres below ground level, though the practical limit depends on the vibrator's horsepower and the presence of any cohesive interbeds. Deeper treatment is possible with larger rigs, but the design must verify that the energy reaches the target horizon without excessive dissipation.
Which Port Macquarie ground conditions are unsuitable for vibrocompaction?
Vibrocompaction is not effective in cohesive soils such as clays or in sands with a fines content exceeding 15 to 20 percent, because the vibratory energy is absorbed rather than transmitted through the soil skeleton. Sites along the Hastings River that contain thick silty or organic layers often require a hybrid approach, combining vibrocompaction in the sandier zones with stone columns or rigid inclusions in the cohesive pockets.
